Your current location : home >> Products >> Explosion-proof automatic tracking and positioning jet fire extinguishing device

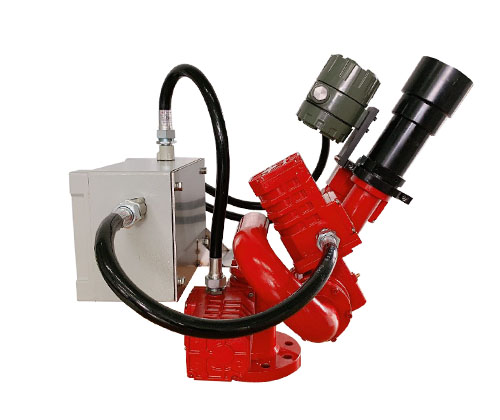

ZDMS0.9/40S-PL60/EX
ZDMS0.9/40S-PL60/EX

ZDMS0.9/40S-PL60/EX

  • Classification:Explosion-proof automatic tracking and positioning jet fire extinguishing device
  • Release date:2021-11-17 15:23:05
24-hour free consultation hotline:18101791653
  • Product overview

灭火装置公司



   ZDMS0.9/40S-PL60/EX explosion-proof automatic tracking and positioning fire monitor is independently developed by Shanghai Pulin Intelligent Mechanical and Electrical Equipment Co., Ltd., a high-tech explosion-proof fire-fighting product integrating alarm and fire fighting. The explosion-proof mark is ExdIIBT4, which is suitable for the explosive gas environment where the representative gas is ethylene, and can also be used for the explosive gas environment where the representative gas of group IIA is propane.

technical parameter

Operating Voltage

DC24V

Limited Data

40L/S

preset pressure

0.8MPa

Protection radius

60M

Jet radius

≥65M

Installation height

8M~30m

Monitoring radius

≥80M

Start Time

≤60s

Pitch angle

-90°~+30°

Horizontal angle

0°~360°


Label
