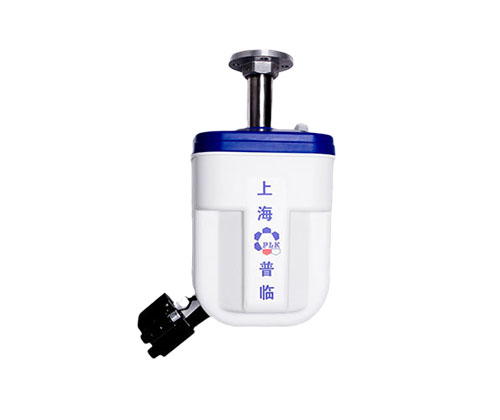

product description:

The fully automatic tracking and positioning jet fire extinguishing device organically combines infrared sensing technology, signal processing technology, communication control technology, computer technology and mechanical transmission technology, and can automatically monitor fires within the protection range around the clock. Once a fire occurs, the fire extinguishing device is activated immediately, and the fire source is intelligently scanned in the horizontal and vertical directions. After determining the two positions of the fire source, the central controller issues an instruction to issue a fire alarm signal, and at the same time starts the water pump, opens the valve, and the fire extinguishing device Shoot water at the fire source to extinguish the fire. After the fire source is extinguished, the central controller will issue an instruction to stop the water injection. If there is a new fire source, the fire extinguishing device will repeat the above process and return to the monitoring state after all fire sources are extinguished. The 5L/S～10L/S fully automatic tracking and positioning jet fire extinguishing device has a cylindrical water jet, which has a long range, a wide protection range and a very powerful fire extinguishing ability.

Performance characteristics:

◆Using dual-band infrared and ultraviolet composite detection technology to detect fire early, high accuracy, wide range, and no blind spots;

◆The location of the fire source can be fixed and located by spraying water to extinguish the fire, which has high efficiency in extinguishing early fires;

◆The spray direction of the nozzle of the fire extinguishing device can be manually controlled through the 485 bus on site;

◆Using bus image transmission technology, combined with on-site color image signals for remote manual manual control;

◆Using the principle of laser irradiation, it can detect the accuracy of the fire extinguishing device without water injection;

◆Three control modes of manual, automatic and remote manual that meet the requirements of the national standard;

◆Bus communication, less consumables, convenient construction, simple and convenient maintenance;

◆Second search without resetting, which greatly shortens the fire-fighting time;

◆Can send out the linkage signal of any other manufacturer's automatic fire alarm system;

◆Light weight, compact size, generous and beautiful.

◆ Meet the requirements of the national standard GB25204-2010 "Automatic tracking and positioning jet fire extinguishing system".

◆Meet the requirements of CNCA/CTS0014-2010 "Technical Specification for Automatic Homing Sprinkler Device".

technical parameter:
